螺纹式插装抗衡阀-导压、提动式
详情介绍
特性/Characteristic:
●当作动缸直立时，协助确保下降时负荷控制；当水平回转运动时，提供优良的加速和减速控制。
●推荐设定压是最大感应压的1.3倍(33~50cc/min)。
●When used with vertical actuators they help to to ensure control of the the load during lowering with horizontal rotary motion they can help provide good control of acceleration and deceleration.
●Recommended setting for counterbalanct valve is 1.3 times the maximum load induced presssure
注：特殊选项请参照P33页，仅有阀型T02须选项，可选用于卸载油路。
Reference page 33,Only T02 Type can be used in unloading circuit
性能表/Specification:
| 型号 Model |
阀系说明 Description |
额定流量 Rated Flow |
最高压力 Max.pressure |
重量 Weight |
| CBA-T11 | 提动式 Poppet type 导压比3:1,4.5:1,10:1 pilot ratio 3:1,4.5:1,10:1 |
T11:45ℓ/min T02:85ℓ/min T17:200ℓ/min (△P:20bar) |
350bar | T11:0.15Kg T02:0.28Kg T17:0.63Kg |
选购指南/How to order:
| CBA | T11 | L | 1R | N | |
| 系列编号： 抗衡阀 Series No. Counter-balance Valves |
阀孔型号 Cavity Size T11 T02 T17 |
调整方式 Controls L-螺杆调整 Standard Screw Adjustment |
压力调整范围 Adjustment Ranges. | 油封材质 Seals:N-丁腈橡胶 Buna N. V-氟橡胶 Viton. | |
| CBA | CBG CBH | ||||
| 1R-25 to 110bar 3R-70 to 300bar 1S-25 to 110bar 3S-70 to 300bar |
2R-70 to 180bar 4R-140 to 350bar 2S-70 to 180bar 4S-140 to 350bar | ||||
| ●R单向阀开启压2.0bar ●S单向阀开启压2.0bar | |||||

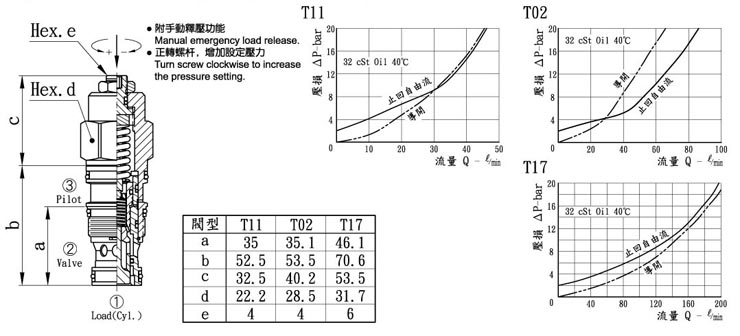

尺寸图/Dimensions(mm)
