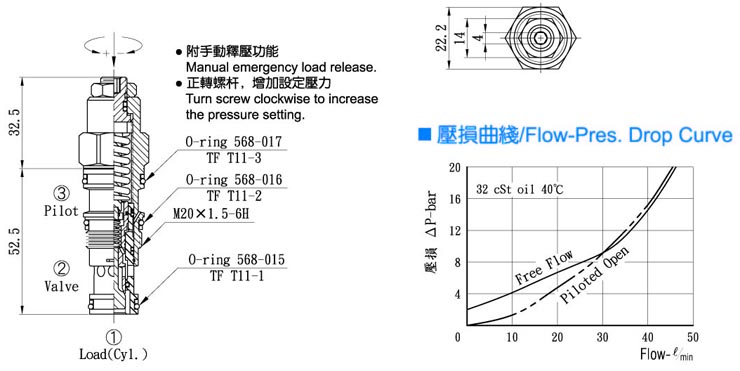

螺纹式插装抗衡阀-导压、提动式

●当作动缸直立时，协助确保下降时负荷控制；当水平回转运动时，提供优良的加速和减速控制。
●推荐设定压是最大感应压的1.3倍(33~50cc/min)。
●When used with vertical actuators they help to to ensure control of the the load during lowering with horizontal rotary motion they can help provide good control of acceleration and deceleration.
●Recommended setting for counterbalanct valve is 1.3 times the maximum load induced presssure
注:阀孔型号:Valve Cavity:T11
成型刀具 Cavity Tools:CT11-D.CT11-R
请参阅 Reference P101
注：特殊选项请参照P33页，仅有阀型T02须选项，可选用于卸载油路。
Reference page 33,Only T02 Type can be used in unloading circuit

型号 Model	阀系说明 Description	额定流量 Rated Flow	最高压力 Max.pressure	重量 Weight
CBG-T11	提动式 Poppet type 4:5:1导压比 4:5:1pilot ratio	45ℓ/min	350bar	0.15Kg

CBG	T11	L	2R	N
系列编号： 抗衡阀 Series No. Counterbalance Valves	阀孔型号 Cavity Size	调整方式 Controls L-螺杆调整 Standard Screw Adjustment	压力调整范围 Adjustment Ranges. 2R-70 to 180bar 4R-140 to 350bar ● R Cracking Pres.2.0 bar 2S-70 to 180bar 4S-140 to 350bar ● S Cracking Pres.0.2 bar	油封材质 Seals:N-丁腈橡胶 Buna N. V-氟橡胶 Viton.
