螺纹式插装单向阀-提动式
详情介绍
特性/Characteristic:
●单向阀允许自由流在一个方向和在另一个方向锁固流量。
●低内泄漏量小于1滴/分钟。
●破裂压力0.2-7bar。
●Check valve allow free flow in one direction and blocked flow in the other direction and blocked flow in the other direction.
●Low leakage of cracking pressures available from 0.2 to 7 bar.
●Extensive range of cracking pressuress available from 0.2 to 7 bar.
●低内泄漏量小于1滴/分钟。
●破裂压力0.2-7bar。
●Check valve allow free flow in one direction and blocked flow in the other direction and blocked flow in the other direction.
●Low leakage of cracking pressures available from 0.2 to 7 bar.
●Extensive range of cracking pressuress available from 0.2 to 7 bar.
性能表/Specification:
性能表/Specification:
| 型号 Model |
阀系说明 Description |
额定流量 Rated Flow |
最高压力 Max.pressure |
重量 Weight |
| CCL-062 | 提动式,自动流 由阀口①至阀口② Poppet type flow from port 1 to port 2 |
请参阅压损曲线表 |
250bar(最大值) | 062:0.06Kg 0.92:0.14Kg 0.82:0.06Kg |
选购指南/How to order:
| CCL | 063 | X | 0.2 | N |
| 系列编号： 单向阀 Series No. Check Valves |
阀孔型号 Cavity Size C062 C092 C082 |
调整方式 Controls X-不可调整 Non-adjustable |
单向阀开阀压 Cracking pressure 0.62,0.82: 0.2-0.2 bar 1.0-1.0 bar 0.92: 0.2-0.2 bar 2.0-1.8bar |
油封材质 Seals:N-丁腈橡胶 Buna N. V-氟橡胶 Viton. |

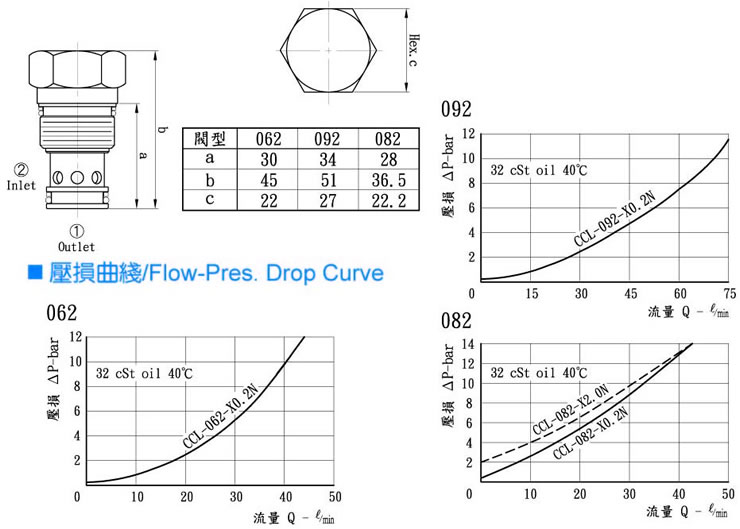

尺寸图/Dimensions(mm)
产品型号
