螺纹式插装单向限流阀-提动式
详情介绍
特性/Characteristic:
●单向限流阀允许自由流在一个方向具有可调节流和在另一个方向锁固流量。
●破裂压力0.3-3.5bar。
●Check valve allow free flow in one derection also can be throttle flow and blocked flow in the other direction.
●Extensive range of cracking pressuress available from 0.3 to 3.5 bar.
注:阀孔型号:Valve Cavity:C082
成型刀具 Cavity Tools:CT28-D.CT28-R
请参阅 Reference P91
●破裂压力0.3-3.5bar。
●Check valve allow free flow in one derection also can be throttle flow and blocked flow in the other direction.
●Extensive range of cracking pressuress available from 0.3 to 3.5 bar.
注:阀孔型号:Valve Cavity:C082
成型刀具 Cavity Tools:CT28-D.CT28-R
请参阅 Reference P91
性能表/Specification:
| 型号 Model |
阀系说明 Description |
额定流量 Rated Flow |
最高压力 Max.pressure |
重量 Weight |
| CCN-082 | 提动式,自动流 由阀口①至阀口② Poppet type flow from port 1 to port 2 |
25ℓ/min |
250bar | 0.06Kg |
选购指南/How to order:
| CCN | 082 | L | 0.2 | N |
| 系列编号： 单向限流阀 Series No. Needle Check Valves |
阀孔型号 Cavity Size |
调整方式 Controls X-不可调整 Non-adjustable |
单向阀开阀压 Cracking pressure 0.2-0.2 bar 2.0-1.8 bar 4.0-3.5 bar |
油封材质 Seals:N-丁腈橡胶 Buna N. V-氟橡胶 Viton. |

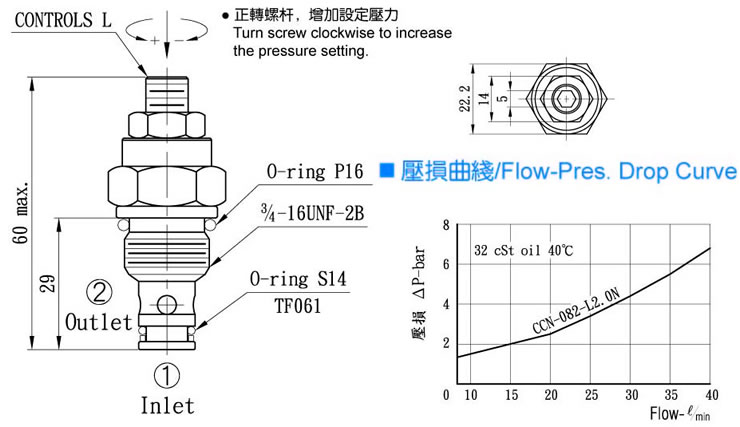

尺寸图/Dimensions(mm)
