螺纹式插装节流阀-微调型、全闭式
详情介绍
特性/Characteristic:
●依赖它们在回路中的位置可作量入，量出，旁伸控制。
●孔口流量正比压降平主根(由于非补偿设计)因此只适合固定负载,变动负载要用压力补偿阀。
●流路可正反向由1到2口或2到1口。
●当节流阀关闭时可关闭流量,关闭时零泄漏。
●Dependant on their position in the circuit they can provide meter-in,meter-out or bleed-off control.
●Needle valves are non-compensating devices the orifice sige will regu late the flow through the valve in proportion to the sgure root of the pressure differential across port 1 and 2,therefore naking these valves suitable only where the load remains constant.
●Flow path is bi-directional i.e.1 to 2 or 2 to 1.
●Positive shut off of flow when needle is closed.
注:阀孔型号:Valve Cavity:C082
成型刀具 Cavity Tools:CT28-D.CT28-R
请参阅 Reference P91
●孔口流量正比压降平主根(由于非补偿设计)因此只适合固定负载,变动负载要用压力补偿阀。
●流路可正反向由1到2口或2到1口。
●当节流阀关闭时可关闭流量,关闭时零泄漏。
●Dependant on their position in the circuit they can provide meter-in,meter-out or bleed-off control.
●Needle valves are non-compensating devices the orifice sige will regu late the flow through the valve in proportion to the sgure root of the pressure differential across port 1 and 2,therefore naking these valves suitable only where the load remains constant.
●Flow path is bi-directional i.e.1 to 2 or 2 to 1.
●Positive shut off of flow when needle is closed.
注:阀孔型号:Valve Cavity:C082
成型刀具 Cavity Tools:CT28-D.CT28-R
请参阅 Reference P91
性能表/Specification:
| 型号 Model |
阀系说明 Description |
额定流量 Rated Flow |
最高压力 Max.pressure |
重量 Weight |
| CNS-082 | 微调型,全闭式 Fine adjustment, positiver shut off. |
10ℓ/min |
250bar | L:0.09Kg K:0.11Kg |
选购指南/How to order:
| CNS | 082 | L | 10 | N |
| 系列编号： 节流阀 Series No. Needle Valves |
阀孔型号 Cavity Size |
调整方式 Controls L-螺杆调整 Standard Screw Adjustment K-旋钮调整 Hand Knob & Locknob Adj. |
流量调整范围 Flow ranges 10-0 to 10 ℓ/min |
油封材质 Seals:N-丁腈橡胶 Buna N. V-氟橡胶 Viton. |

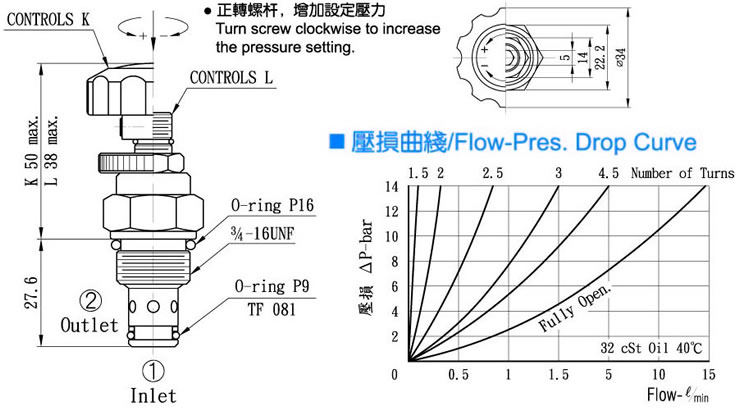

尺寸图/Dimensions(mm)
