螺纹式插装流量阀-流量调整附止回阀
详情介绍
特性/Characteristic:
●功能参数同等于双向节流阀但包含一个回转方向的自由流单向阀。
●依靠他们在回路中的位置，可提供量入量出和旁伸控制。
●孔口流量正比压降平方根(由于非补偿设计)因此只适合固定负载,变动负载要用压力补偿阀。
●Performance parameters are sinilar to the bi-directional reedle valve but inelude a high capacity free flow check in the return directon.
●Dependant on their position in the circuit they can provide meter-in meter-out or bleed-off control.
●Needle valves are non-compensating devices the orifice sige will regu late the flow through the valve in proportion to the sgure root of the pressure differential across port 1 and 2,therefore naking these valves suitable only where the load remains constant.
注:阀孔型号:Valve Cavity:C122
成型刀具 Cavity Tools:CT22-D.CT22-R
请参阅 Reference P93
●依靠他们在回路中的位置，可提供量入量出和旁伸控制。
●孔口流量正比压降平方根(由于非补偿设计)因此只适合固定负载,变动负载要用压力补偿阀。
●Performance parameters are sinilar to the bi-directional reedle valve but inelude a high capacity free flow check in the return directon.
●Dependant on their position in the circuit they can provide meter-in meter-out or bleed-off control.
●Needle valves are non-compensating devices the orifice sige will regu late the flow through the valve in proportion to the sgure root of the pressure differential across port 1 and 2,therefore naking these valves suitable only where the load remains constant.
注:阀孔型号:Valve Cavity:C122
成型刀具 Cavity Tools:CT22-D.CT22-R
请参阅 Reference P93
性能表/Specification:
| 型号 Model |
阀系说明 Description |
额定流量 Rated Flow |
最高压力 Max.pressure |
重量 Weight |
| CNC-122 | 流量调整附止回阀 Flow regulate with reverse free flow check. |
100ℓ/min |
250bar | L:0.31Kg K:0.33Kg |
选购指南/How to order:
| CNC | 122 | L | 2.0 | N |
| 系列编号： 流量调节阀 Series No. Flow Control Valves |
阀孔型号 Cavity Size |
调整方式 Controls L-螺杆调整 Standard Screw Adjustment K-旋钮调整 Hand Knob & Locknob Adj. |
单向阀开阀压 Cracking pressure 0.2-0.2 bar 2.0-2.0 bar |
油封材质 Seals:N-丁腈橡胶 Buna N. V-氟橡胶 Viton. |

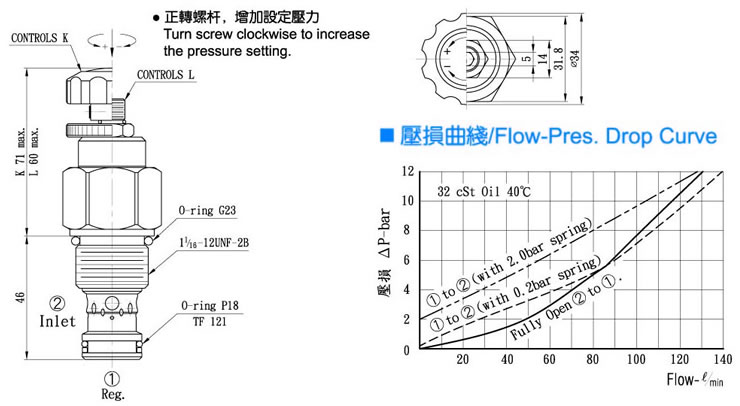

尺寸图/Dimensions(mm)
产品型号
上一个产品：液动换向阀下一个产品：螺纹式插装流量阀-流量调整附止回阀
